Feature
· 1/2.8" 5MP Progressive Scan CMOS;
· 2592*1944 @ 25/30fps;
· Ultra starlight, Colour:0.0005 Lux @ (F1.69, AGC ON);
· 45× Optical Zoom (4.7 ~ 212mm), 16× Digital Zoom;
· HFOV: 63.24° ~ 1.50° (Wide ~ Tele)
· Electronical Defog;
· WDR;
· Auto Day/Night Mode;
· Electronical Image Stabilisation (EIS)/Gyro EIS (Option);
· High Precision Optical Axis;
· Reserve MIPI;
· Compatible with VISCA, PELCO-D/P;
· Compatible with ONVIF.
Specifications
Camera | |
Sensor | 1/2.8” Progressive Scan CMOS |
Effective Pixels | 5 Megapixels |
Lens | |
Focal Length | 4.7 ~ 212mm, 45× Optical Zoom |
Aperture Range | F1.67 ~ F4.69 |
FOV | 63.24° × 48.80° ~ 1.50° × 1.33° (Wide ~ Tele) |
Min. Focus Distance | 100mm ~ 3500mm (Wide ~ Tele) |
Zoom Speed | 6.0 Sec (Optical, Wide ~ Tele) |
Compression Standard | |
Video Compression | H.265 / H.264 / MJPEG |
H.265 Type | Main Profile |
H.264 Type | BaseLine Profile / Main Profile / High Profile |
Video Bitrate | 32 Kbps ~ 16Mbps |
Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
Audio Bitrate | 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32-192Kbps (MP2L2) / 16-64Kbps (AAC) |
Image | |
Main Stream | 30/25fps (2592×1944, 1920×1080,1280×960, 1280×720) |
Sub Stream | 30/25fps (1280×720, 704×576, 640×480, 352×288) |
Third Stream | 30/25fps (704×576,640×480,352×288) |
Image Settings | Saturation, Brightness, Contrast, Sharpness, etc. |
Min. Illumination | Colour:0.0005 Lux @ (1.69, AGC ON); B/W:0.0001 Lux @ (F1.69, AGC ON) |
Shutter Speed | 1/25 ~ 1/100,000 Sec |
BLC | Support |
Exposure Mode | AE / Aperture Priority / Shutter Priority / Manual Exposure |
Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
Area Exposure / Focus | Support |
Day/Night | Auto (ICR) / Manual (Colour, B/W) |
Digital Zoom | 16× |
Defog | Electronical Defog |
Image Stabilization | Electronical Image Stabilisation (EIS) / Gyro-EIS (Optional) |
Noise Reduction | 3D / 2D |
Picture Overlay | Support BMP 24-bit Image Overlay, Customizable Area |
Region of Interest | Support 3 Streams and 4 Fixed Areas |
Network | |
Storage | Micro SD / SDHC / SDXC card (Up to 512G), NAS (NFS, SMB / CIFS supported) |
Protocols | ONVIF (PROFILE S, PROFILE G), SDK, TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 |
Intelligent | |
Basic Event | Motion Detection, Video Tamper, Alarm Input, Alarm Output, Exception Alarm |
Smart Event | Area Intrusion, Line Crossing, Region Exiting, etc. |
Interface | |
External Interface | 36pin FFC (Ethernet, RS485, TTL 3.3V, SDHC, Alarm In/Out, Line In/Out, power) USB3.0 |
Digital Interface | MIPI |
General | |
Operating Conditions | -30℃ ~ 60℃; Humidity ≤ 95% (non-condensing) |
Power Supply | 12V DC ± 10% |
Power Consumption | Avg: 3W / Max: 5.2W |

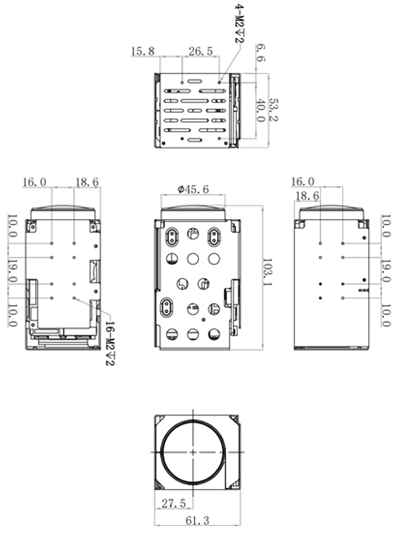

Dimensions (Unit: mm) | 101.3*53.2*61.3mm |
Weight | 361g |
