Feature
· Germanium-Free LWIR Lens
Export-control free. No supply chain restrictions for global deployment.
· Athermalized Performance
Stable imaging from -40°C to +80°C without refocusing. Ideal for harsh environments.
· High Sensitivity
19mm, F/1.0 aperture with ≥86% transmission (8 ~ 12μm). Superior low-contrast detection in total darkness, fog, or smoke.
· Compact & Rugged
41g, Φ34×22.3mm. IP67 sealed. Compatible with 640×512/12μm sensors.
Reliable. Unrestricted. Ready for global defence, surveillance, and industrial IR systems.
Specifications
Lens | |
Type | Athermalized Fixed Lens |
Focal Length | 19mm |
Aperture Range | F1.0 |
FOV | 23.2° × 18.5° (640 × 512/12μm) |
Focusing Range | 1M ~ ∞ |
Sealing | IP67 (front of lens) |
Coating | AR |
Spectral Band | 8 ～ 12μm |
Transmission | ≥86% @ 8 ~ 12μm |
M.B.F.L | 8.5mm |
General | |
Operating Conditions | -40℃ ~ 80℃ |

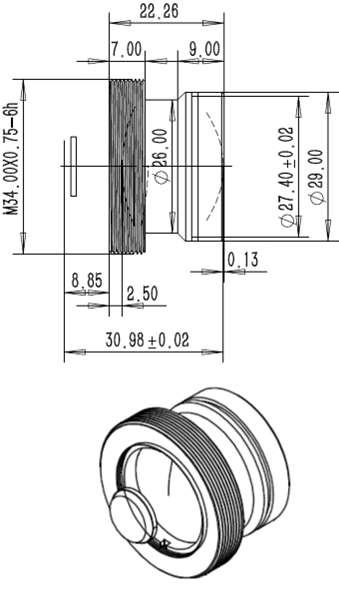

Dimensions | Ф34 * 22.3mm |
Weight | 41g |
FAQ
Q: Why choose an athermalized lens over a manual focus lens?
A: Athermalized lenses use mechanical-thermal compensation to maintain a stable focal plane. This is critical for unmanned or remote stations where manual refocusing is impossible during temperature swings from day to night.
Q: Does the lens support DLC (Diamond-Like Carbon) coating for outdoor use?
A: Yes. Our lenses can be supplied with AR (Anti-Reflective) coating for high transmission or DLC coating on the front element to withstand harsh environmental conditions like sand, wind, and salt spray.
Q: Is this lens compatible with 384x288 12μm sensors as well?
A: Absolutely. While optimized for 640x512 12μm to ensure edge-to-edge clarity, it is fully backward compatible with 384x288 12μm or 17μm sensors.
Q: Can you provide the custom adapter or mount for our module?
A: We provide standard M34 mounts. Custom mechanical interface design is available for bulk OEM orders to ensure a perfect fit with your thermal core.
About the Germanium-Free Advantage:
The ZV-LAF series utilizes advanced chalcogenide glass technology to achieve optical performance comparable to traditional Germanium lenses but without the heavy export restrictions (Non-ITAR/EAR friendly).
This ensures a stable supply chain and consistent pricing for mass-production OEM projects.
