SWaP-Optimized UAV Thermal Core with USB UVC Output
Engineered for applications where every gram counts. The ZV-LZRW019U is a SWaP-optimized thermal module weighing just 32g with a power consumption of less than 0.7W.
It features a 19mm Athermalized Lens [cite_start]that maintains sharp focus from -40°C to 60°C without the weight of mechanical motors. With a standard USB 2.0 interface (UVC compliant), developers can instantly integrate 640×512 thermal imaging into drones, robotics, and portable devices—no complex drivers required.
Specifications
Camera | |
Detector type | Uncooled VOx Microbolometer |
Effective Pixels | 640 × 512 |
Pixel Pitch | 12μm |
Spectral Band | 8 ～ 14μm |
NETD | ≤40 mK (@25 °C, F#1.0) |
Lens | |
Focal Length | 19mm Athermalized Lens |
FOV | 22.8° × 18.3° (Wide ~ Tele) |
Image | |
Display. Resolution | 640 × 512 @ 50 fps |
Image Settings | Brightness, Contrast, etc. |
Pseudo Colours | 15 Modes Available |
Mirror | Support |
Interface | |
USB | USB 2.0, Compatible with UVC Format. |
General | |
Operating Conditions | -40℃ ~ 60℃; Humidity < 90%RH |
Power Supply | 5V ~ 16V DC |
Power Consumption | Max: 0.7W |
Dimensions (Unit: mm) | 44.6*Ø26 |
Weight | 32g |

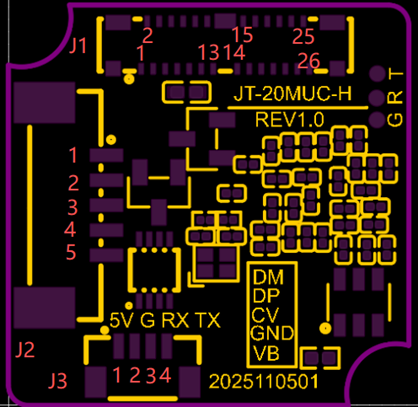

Interface
J3 HC-0.8-4PWT | |
No. | Pin Name |
1 | POWER_IN_5V_DC |
2 | GND |
3 | UART_RX |
4 | UART_TX |
J2 5PIN-1.25mm | |
No. | Pin Name |
1 | USB_DM |
2 | USB_DP |
3 | CVBS |
4 | GND |
5 | POWER_IN_5V_DC |

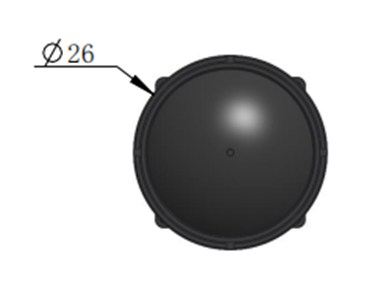

Dimension
Unit: mm
